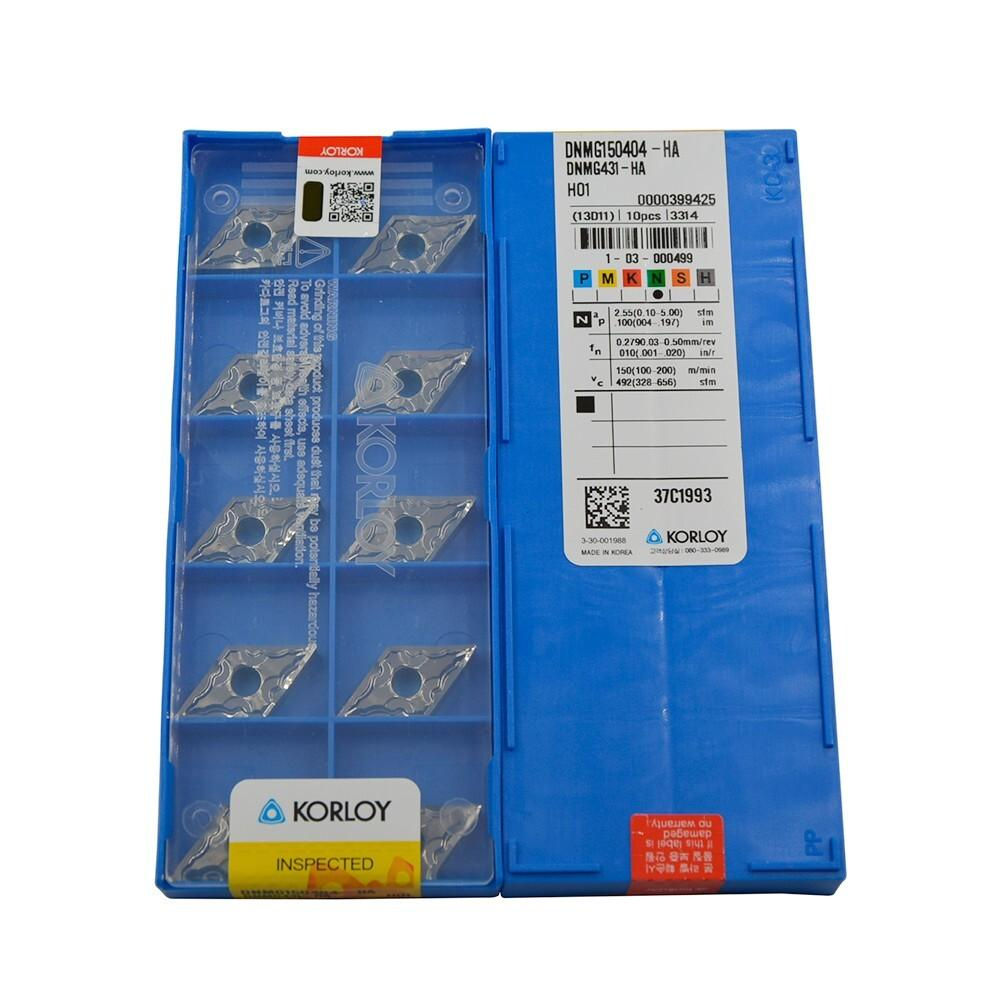

KORLOY DNMG 150604-HA PC9030 Carbide Turning Insert
KORLOY DNMG 150604-HA PC9030 is a high-performance negative turning insert specifically developed for finishing and semi-finishing operations on ISO M stainless steels. Featuring the HA chipbreaker geometry and PC9030 PVD coating, it delivers low cutting forces, excellent surface finish, long tool life, and reliable chip control.
The polished cutting edge of the HA geometry significantly reduces built-up edge (BUE), making it particularly effective when machining AISI 304, AISI 316, 316L, duplex stainless steels, and other adhesive materials. Improved chip flow minimizes cutting temperatures, reduces cutting forces, and enhances surface quality.
The PC9030 grade is a multi-layer PVD-coated carbide developed primarily for stainless steel machining. It offers excellent wear resistance, heat resistance, and edge stability in continuous cutting operations. It also performs well in selected titanium alloys and nickel-based superalloys.
Advantages of the HA Chipbreaker


Low cutting forces


Excellent chip control


Polished cutting edge minimizes built-up edge


Ideal for thin-wall components


Superior surface finish


Optimized for finishing and semi-finishing


Extended tool life in stainless steel machining

Technical Specifications
SpecificationValueInsert DesignationDNMG 150604-HAGradePC9030Insert ShapeDNMG (55° Negative Diamond)Nose Radius0.4 mmThickness6.35 mmCoatingPVDISO Material GroupM (Stainless Steel)Recommended OperationFinishing / Semi-Finishing
Recommended Workpiece Materials


AISI 304


AISI 304L


AISI 316


AISI 316L


Duplex Stainless Steel


Super Duplex Stainless Steel


Titanium Alloys


Selected Nickel-Based Superalloys

Korloy Grade Comparison
GradeISO RangeRecommended ApplicationPC9030M25–M30General stainless steel finishing and semi-finishingPC9035M30–M35Interrupted cutting, valves and fittings, high edge toughnessPC5300P / M / KUniversal grade for steel and stainless steelPC5400P / MHeavy-duty and interrupted machiningPC8110M / SHigh-speed machining of stainless steel and superalloysPC8115M / SInterrupted cutting with superior fracture resistanceNC9115M15Continuous cutting at high speedsNC9125M25General-purpose stainless steel machiningNC9135M35Heavy and interrupted stainless steel machiningNC3215P15–P25Steel finishing and semi-finishingNC3225P25–P35General steel turningNC3235P35–P45Heavy-duty steel machiningNC6315K15–K25Cast iron machiningDNC100 / DNC250 / DNC350HCBN grades for hardened steels
Recommended Grades by Material
Workpiece MaterialRecommended GradeAISI 304 / 316 Stainless SteelPC9030, PC9035, NC9125Duplex Stainless SteelPC8110, PC8115, NC9135C45 / 1040 / 4140 SteelNC3215, NC3225, PC5300GG25 / GGG40 Cast IronNC6315Hardened Steel (Above 55 HRC)DNC100, DNC250, DNC350
Conclusion
KORLOY DNMG 150604-HA PC9030 is a premium carbide turning insert designed to provide exceptional performance in stainless steel machining. Its HA chipbreaker ensures outstanding chip control and minimizes built-up edge, while the PC9030 PVD coating delivers excellent wear resistance, heat resistance, and long tool life.
For machining AISI 304, AISI 316, duplex stainless steels, and other difficult-to-cut materials, the DNMG 150604-HA PC9030 offers consistent cutting performance, superior surface finish, and improved machining efficiency, making it an excellent choice for precision CNC turning applications.
